New Foyer and Adaption of the Building Academy, Salzburg - AT, 2012

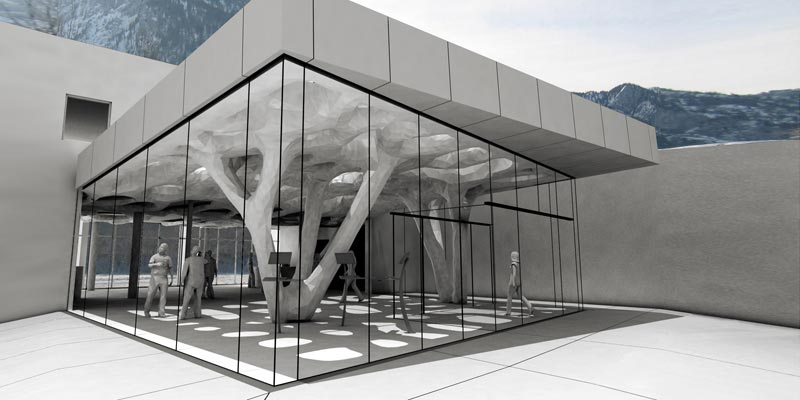

The task was to design a new foyer and an entrance to the Building Academy as well as to transform an existing factory hall into a cultural venue. After the conversion, the foyer will serve multiple purposes - as a lobby for the school and as a public space for various cultural events in the adjacent halls, such as presentations, movie screenings, concerts or rehearsals.

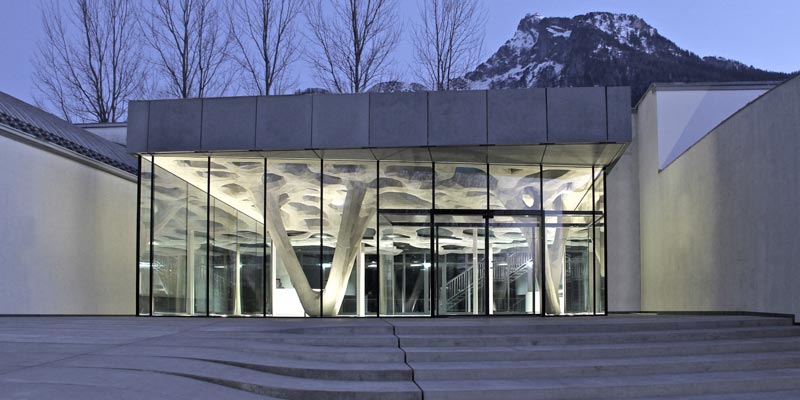

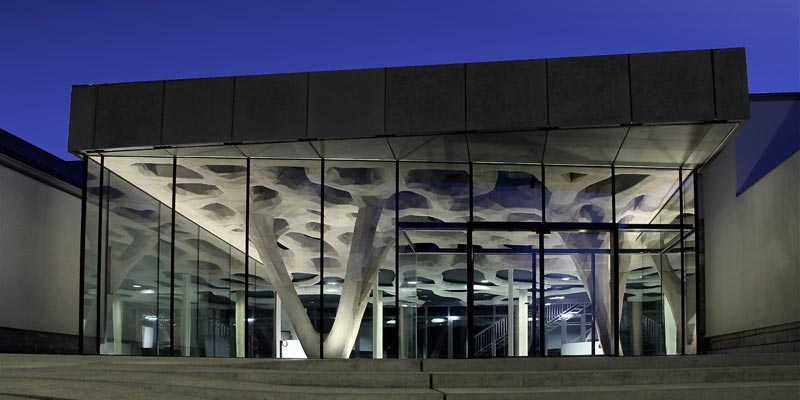

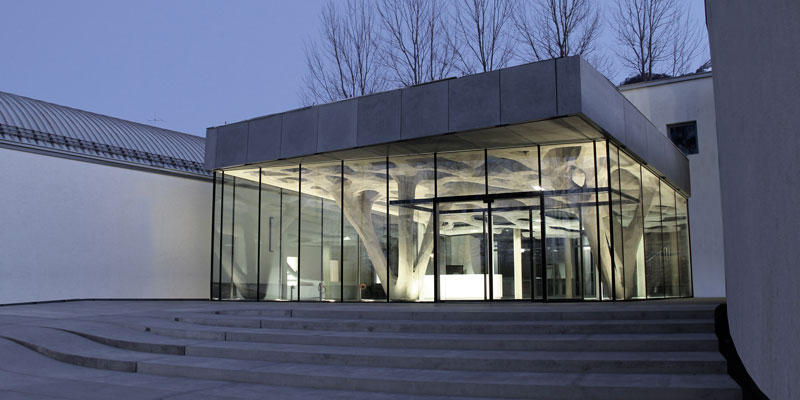

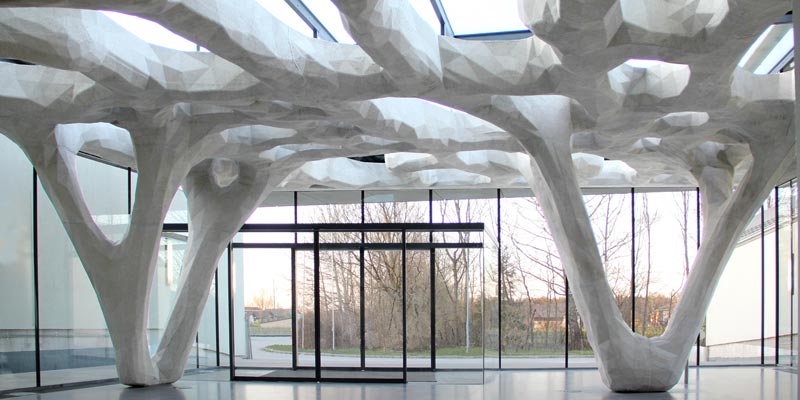

The new foyer creates a consistent and smooth transition between the exterior and the interior of the building. It connects the different functional areas in one continuous fluid space and creates an open and evocative atmosphere. Structural performance, lighting and functional zoning as well as the creation of an intuitively understandable guidance system correlate in one continuous structure. The widening of the pattern from a framed into a freely spreading geometry can be read as a contingent affiliation of the existing spatial characteristics.

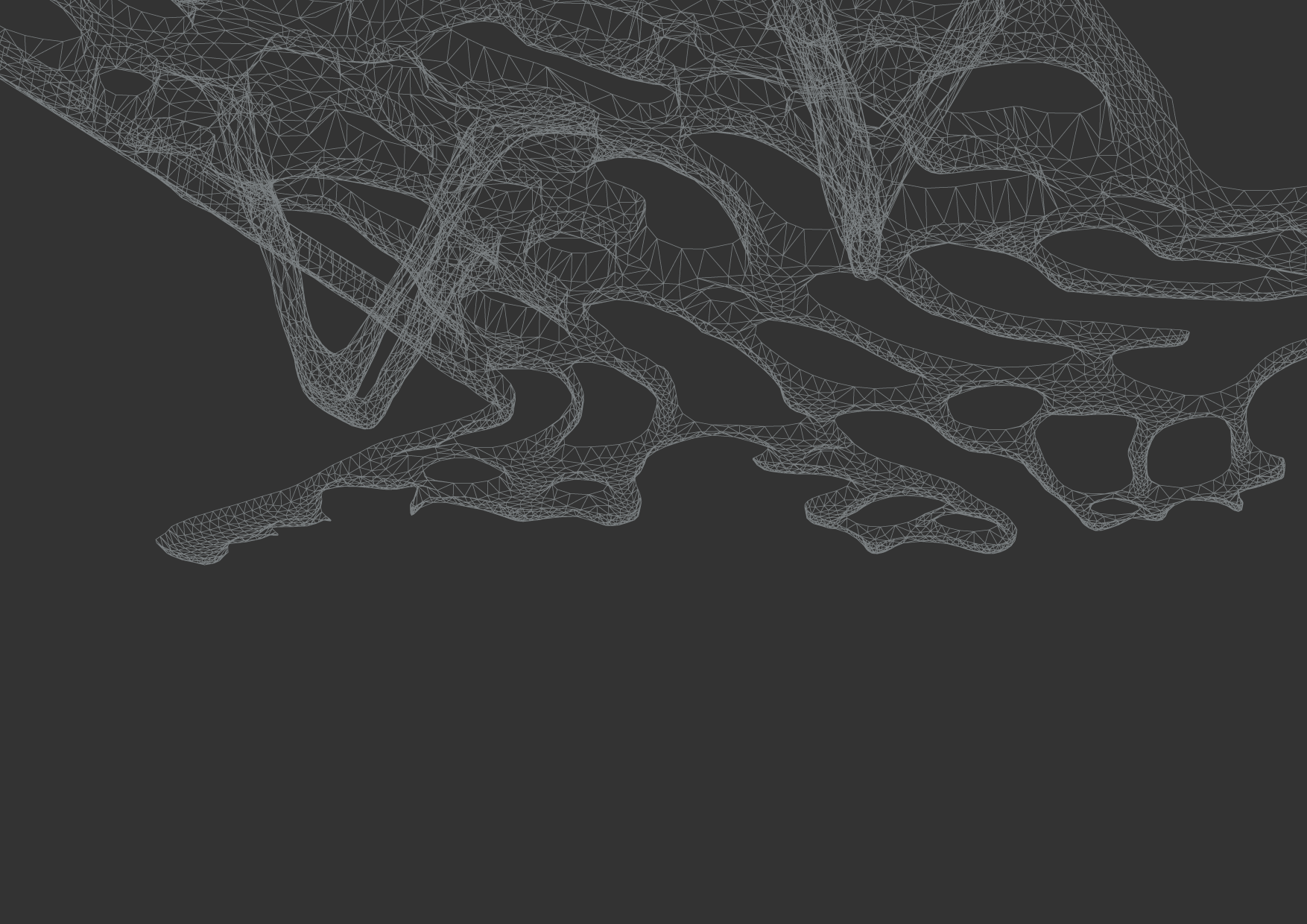

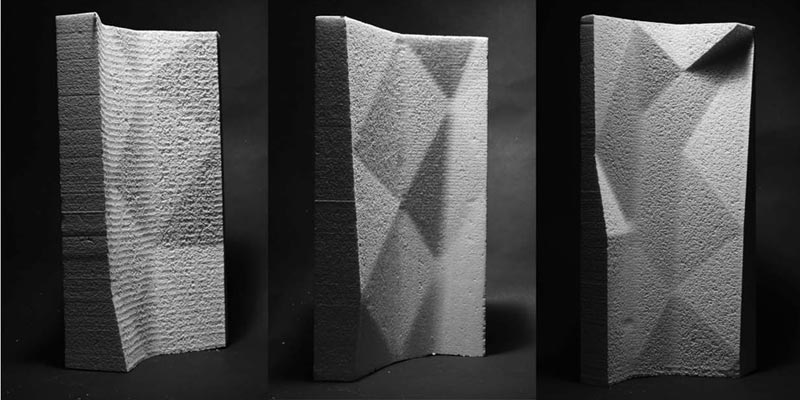

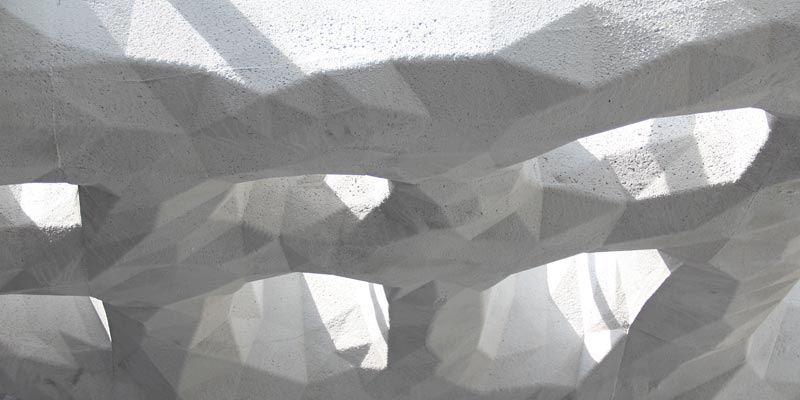

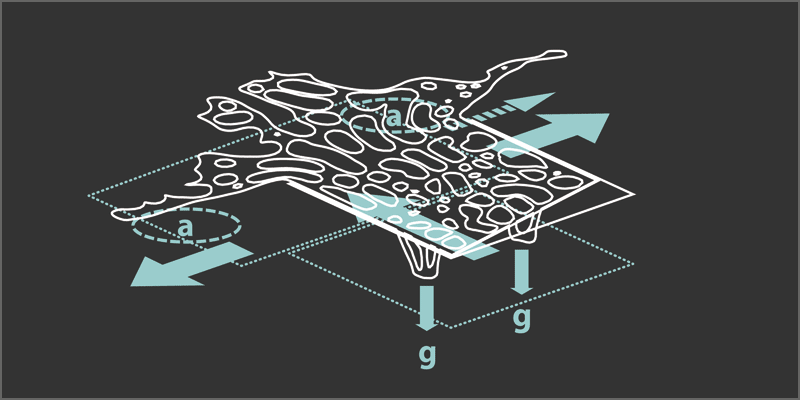

The three-dimensional pattern was generated in a simulation of fluids based on particle flows. Liquids have three essential parameters: viscosity, density and surface tension. The interactions between these three physical properties have been tested on the computer in a series of variations to generate a pattern with a large number of holes and a high level of coherence. Realizing this complex structure in exposed concrete posed major challenges in the area of formwork construction, which was tested and optimized in 1:1 mock ups. The finely triangulated surface of the concrete structure allows a subtle play of light and shadow and was achieved by testing different milling techniques. The advanced geometry of the roof and its innovative construction process reflect the competencies and teaching focus of the Building Academy in the field of concrete application.

Start of construction: 2010 (completion 2012)

Client: Austrian Federal Economic Chamber

User: Building Academy Salzburg

Architect: soma ZT GmbH

Team: Alexander Matl, Jeanin Wörndl, Nadine Rössler

Structural engineering: Brandstätter ZT GmbH

HVAC: TB Stampfer GmbH

Acoustics and building physics: Quiring Consultants

Electrical engineer: Instaplan GmbH

1

photo /©F.Hafele
